Group Lasso regularizationΒΆ

Comparison of solvers with total variation regularization.

The group lasso penalty enters the optimization through its proximal operator, which is implemented in copt through the function prox of object cp.utils.GroupL1.

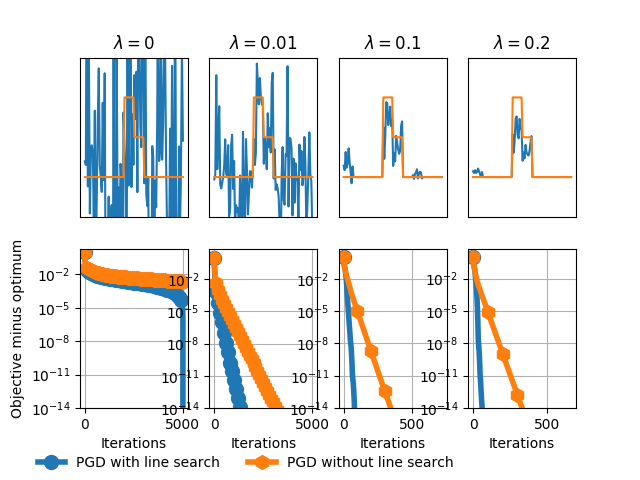

../_images/sphx_glr_plot_group_lasso_001.png

Out:

#features 100
beta = 0
beta = 0.01
Achieved relative tolerance at iteration 1396
beta = 0.1
Achieved relative tolerance at iteration 123
Achieved relative tolerance at iteration 718
beta = 0.2
Achieved relative tolerance at iteration 98
Achieved relative tolerance at iteration 661

import numpy as np
from scipy import sparse
from scipy.sparse import linalg as splinalg
import pylab as plt
import copt as cp

np.random.seed(0)

# .. generate some data ..
n_samples, n_features = 100, 100
groups = [np.arange(10 * i, 10 * i + 10) for i in range(10)]

# .. construct a ground truth vector in which ..
# .. group 4 and 5 are nonzero ..
ground_truth = np.zeros(n_features)
ground_truth[groups[4]] = 1
ground_truth[groups[5]] = 0.5

max_iter = 5000
print('#features', n_features)

A = sparse.rand(n_samples, n_features, density=0.2)
sigma = 1.
b = A.dot(ground_truth) + sigma * np.random.randn(n_samples)

np.random.seed(0)
n_samples = n_features

# .. compute the step-size ..
s = splinalg.svds(A, k=1, return_singular_vectors=False,
                  tol=1e-3, maxiter=500)[0]
step_size = 1. / cp.utils.get_lipschitz(A, 'square')
f_grad = cp.utils.SquareLoss(A, b).func_grad

# .. run the solver for different values ..
# .. of the regularization parameter beta ..
all_betas = [0, 1e-2, 1e-1, 0.2]
all_trace_ls, all_trace_nols, all_trace_pdhg_nols, all_trace_pdhg = [], [], [], []
all_trace_ls_time, all_trace_nols_time, all_trace_pdhg_nols_time, all_trace_pdhg_time = [], [], [], []
out_img = []
for i, beta in enumerate(all_betas):
    print('beta = %s' % beta)
    G1 = cp.utils.GroupL1(beta, groups)

    def loss(x):
        return f_grad(x)[0] + G1(x)

    cb_tosls = cp.utils.Trace()
    x0 = np.zeros(n_features)
    cb_tosls(x0)
    pgd_ls = cp.minimize_PGD(
        f_grad, x0, G1.prox, step_size=step_size,
        max_iter=max_iter, tol=1e-14, verbose=1,
        callback=cb_tosls)
    trace_ls = np.array([loss(x) for x in cb_tosls.trace_x])
    all_trace_ls.append(trace_ls)
    all_trace_ls_time.append(cb_tosls.trace_time)

    cb_tos = cp.utils.Trace()
    x0 = np.zeros(n_features)
    cb_tos(x0)
    pgd = cp.minimize_PGD(
        f_grad, x0, G1.prox,
        step_size=step_size,
        max_iter=max_iter, tol=1e-14, verbose=1,
        line_search=False, callback=cb_tos)
    trace_nols = np.array([loss(x) for x in cb_tos.trace_x])
    all_trace_nols.append(trace_nols)
    all_trace_nols_time.append(cb_tos.trace_time)
    out_img.append(pgd.x)


# .. plot the results ..
fig, ax = plt.subplots(2, 4, sharey=False)
xlim = [0.02, 0.02, 0.1]
for i, beta in enumerate(all_betas):
    ax[0, i].set_title(r'$\lambda=%s$' % beta)
    ax[0, i].set_title(r'$\lambda=%s$' % beta)
    ax[0, i].plot(out_img[i])
    ax[0, i].plot(ground_truth)
    ax[0, i].set_ylim((-0.5, 1.5))
    ax[0, i].set_xticks(())
    ax[0, i].set_yticks(())

    fmin = min(np.min(all_trace_ls[i]), np.min(all_trace_nols[i]))
    scale = all_trace_ls[i][0] - fmin
    plot_tos, = ax[1, i].plot(
        (all_trace_ls[i] - fmin) / scale,
        lw=4, marker='o', markevery=100,
        markersize=10)

    plot_nols, = ax[1, i].plot(
        (all_trace_nols[i] - fmin) / scale,
        lw=4, marker='h', markevery=100,
        markersize=10)

    # plot_pdhg, = ax[1, i].plot(
    #     (all_trace_pdhg[i] - fmin) / scale,
    #     lw=4, marker='^', markevery=100,
    #     markersize=10)
    #
    # plot_pdhg_nols, = ax[1, i].plot(
    #     (all_trace_pdhg_nols[i] - fmin) / scale,
    #     lw=4, marker='d', markevery=100,
    #     markersize=10)

    ax[1, i].set_xlabel('Iterations')
    ax[1, i].set_yscale('log')
    ax[1, i].set_ylim((1e-14, None))
    ax[1, i].grid(True)


plt.gcf().subplots_adjust(bottom=0.15)
plt.figlegend(
    (plot_tos, plot_nols),
    ('PGD with line search', 'PGD without line search'), ncol=5,
    scatterpoints=1,
    loc=(-0.00, -0.0), frameon=False,
    bbox_to_anchor=[0.05, 0.01])

ax[1, 0].set_ylabel('Objective minus optimum')
plt.show()

Total running time of the script: ( 0 minutes 17.054 seconds)
